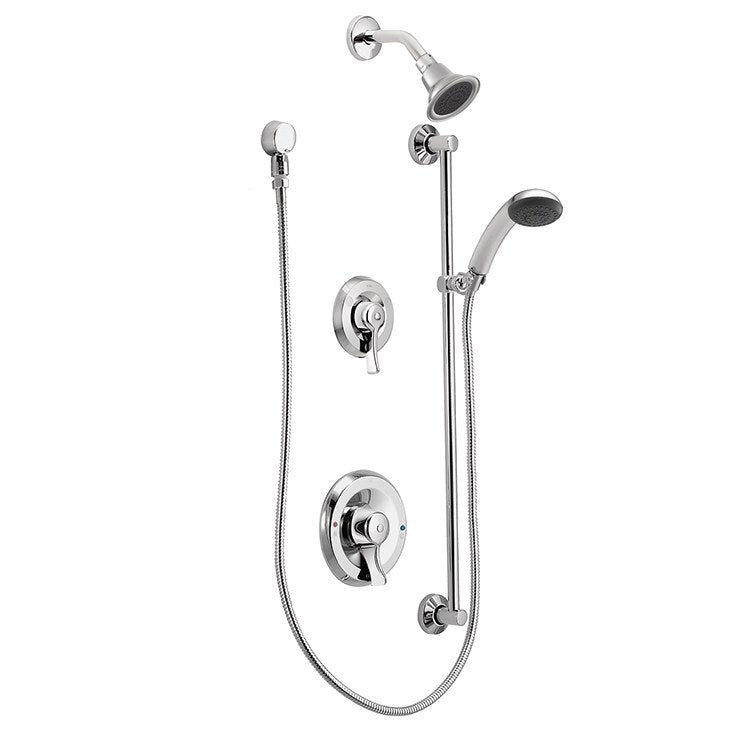

This WaterSense-certified, three-function shower and handshower system includes a Posi-Temp pressure balancing valve trim with 1/4 turn stops, a three-function transfer valve with 1/2" CC connections, a handshower with non-positive pause, a 30" slide bar, a drop ell, 69" metal shower hose, a single-function shower head, a shower arm, and vandal-resistant screws for commercial applications.
The temperature handle operates counterclockwise through a 270-degree arc with off at 6 o'clock, and the maximum hot at the 9 o'clock position, adjustable temperature limit stop, and a pressure balancing mechanism that maintains a selected discharge temperature to +/- 2 degrees. The 8-1/8" handshower has a 3-5/16" diameter spray face with quick-clean nozzles.
- 1.5 gpm flow rate
- Transfer valve operates three distinct functions
- Pressure balancing mechanism maintains selected temperature
- 1222HD brass cartridge design in temperature control valve accommodatesback to back installations
- Brass construction with stainless steel materials
- Ceramic disc cartridge in transfer valve
- Accommodates back-to-back installation
| Model Number | 8342EP15 |
|---|---|
| Product type | 1 Function with Handshower and Slide Bar |
| Number of handles | 2 |
| Handle type | Lever |
| Finish | Chrome |
| Ada compliant | Yes |
| Flow rate | 1.5 GPM |
| Handshower details | Full Spray |
| Connection details | 1/2IN CC |
| Includes | Showerhead, Handshower, 30IN Slide Bar, 69IN Metal Hose, Drop Elbow, 3-Function Transfer Valve and Mounting Hardware |
| Material | Metal |
| Length | 31-3/4 IN |
| Width | 8 IN |
| Height | 5-3/8 IN |
| Style | Transitional |
| Color family | Chrome |
| Collection | Commercial Posi-Temp |
Not eligible for return unless defective.
Commercial Posi-Temp Shower/Handshower System with Slide Bar - OPEN BOX
8342EP15 | Moen
Product Price: $149.86 from $484.12. Save $334.26.
