About Commercial Posi-Temp Shower/Handshower System with Slide Bar - OPEN BOX

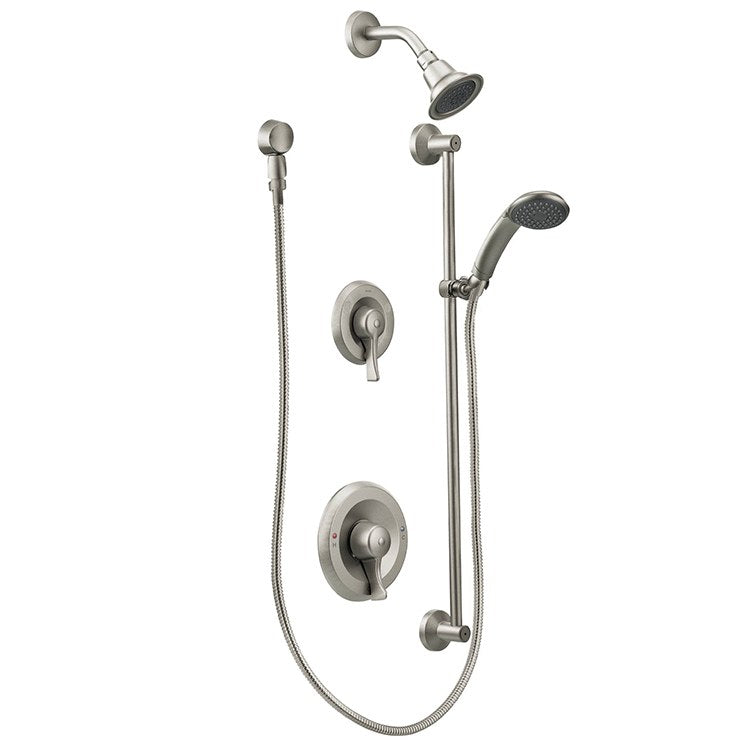

This three-function shower and handshower system includes a Posi-Temp pressure balancing valve trim with 1/4 turn stops, a three-function transfer valve with 1/2" CC connections, a handshower with non-positive pause, a 30" slide bar, a drop ell, 69" metal shower hose, a single-function shower head, and a shower arm.
The temperature handle operates counterclockwise through a 270-degree arc with off at 6 o'clock, and the maximum hot at the 9 o'clock position, adjustable temperature limit stop, and a pressure balancing mechanism that maintains a selected discharge temperature to +/- 2 degrees. The transfer valve operates three distinct functions. The 8-1/8" handshower has a 3-5/16" diameter spray face with quick-clean nozzles.
- 2.5 gpm flow rate
- Transfer valve operates three distinct functions
- Pressure balancing mechanism maintains selected temperature
- 1222HD brass cartridge design in temperature control valve accommodatesback to back installations
- Brass construction with stainless steel materials
- Ceramic disc cartridge in transfer valve
- Accommodates back-to-back installation
- Requires Posi-Temp and transfer valve rough-in valves sold separately
Commercial Posi-Temp Shower/Handshower System with Slide Bar - OPEN BOX Product Specifications
Model Number | T8342CBN |
---|---|
Number of handles | 2 |
Handle type | Lever |
Finish | Classic Brushed Nickel |
Ada compliant | Yes |
Flow rate | 2.5 GPM |
Showerhead type | 3 Function |
Includes | Showerhead, Shower Arm, Flange, Handle, Hand-Held Shower, 69IN Hose, 30IN Slide Bar |
Material | Metal |
Length | 6-3/4 IN |
Color family | Gray |
Collection | Commercial Posi-Temp |
You May Also Like
Shipping & Returns
Not eligible for return unless defective.
Questions & Answers
Commercial Posi-Temp Shower/Handshower System with Slide Bar - OPEN BOX Customer Reviews
About Moen
Moen
Commercial Posi-Temp Shower/Handshower System with Slide Bar - OPEN BOX
T8342CBN | Moen
$286.86
$530.65
Save $243.79
