Moen 8312AC10

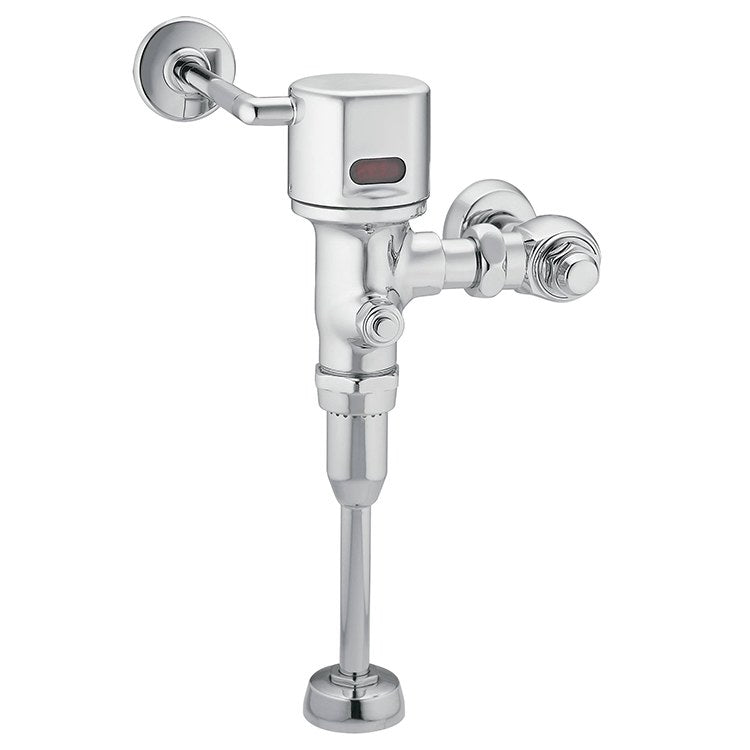

M-Power 3/4" AC Powered Sensor Exposed Style Urinal Flush Valve

In Stock. Ships in 1 Business Day.

Finish: Chrome

M-Power 3/4" AC Powered Sensor Exposed Style Urinal Flush Valve

Authorized Retailer


Product type Urinal
Size 3/4 IN
Pressure 15 to 120 PSI
Material Brass
Voltage 12 V
End connection IPS
Length 14-1/8 IN
Width 10-1/3 IN
Height 4-4/5 IN
Style Transitional
Color family Chrome
Collection M-Power
Moen Commercial's line of M-Power sensor-operated products provide heavy-use facilities efficient and hygienic solutions to maintain sanitary environments and reduce maintenance. This AC-powered urinal flush valve allows convenient and sanitary hands-free operation. Features an exposed design with a brass angle stop valve, cast brass construction with a chrome electroplated finish, chloramine-resistant seals, a vandal-resistant angle stop and double O-ring connections, and a sensor-activated electronic flush mechanism with manual override.

The infrared sensor has an adjustable range up to 15". The flushometer also features an optional 24-hour Sentinel Flush (factory setting is off). Compatible with the 104630 transformer which powers up to eight flush valves. Designed for used with 3/4" top spud urinals. Measures 11" high. Comes with a manufacturer's 5-year limited warranty.
  • 1.0 gpf flow rate
  • 3/4" top spud
  • Operating pressures: 20-125 psi
  • Sensor activated electronic flushometer for hands-free operation
  • Manual override with push-button operation
  • Self-cleaning Accuset piston technology
  • High-back pressure vacuum breaker
  • Adjustable installation with left or right connection
  • 3/4" IPS inlet supply

Moen offers a diverse selection of thoughtfully designed kitchen and bath faucets, showerheads, accessories, bath safety products and kitchen sinks for residential and commercial applications. Each Moen product delivers the best possible combination of meaningful innovation, useful features, and lasting value. Riverbend Home is an authorized retailer.

We offer a 30-day SATISFACTION GUARANTEE. If you receive a damaged or defective item or you are dissatisfied with a product for any reason, you can return it for an exchange or refund within 30 days. See our full refund/return policy.
